Selection Scheme Of 40.5kV Cabinet

Selection Scheme Of 40.5kV Cabinet

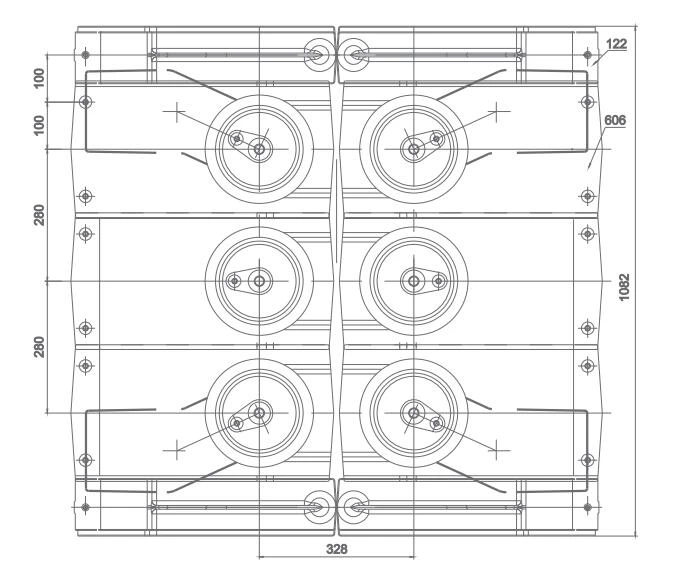

Scheme 3: Phase Spacing 360

Specifications Drawing No. Quantity Inter-electrode Distance
CHN40.5-309P/606  5RA35.012.150.01 2 328
CHN40.5-309P/606  5RA35.012.150.06 2 328
CHN40.5-304P/606 5RA35.012.050 2 328
ZB40.5-003 5RA35.012.011 4 328

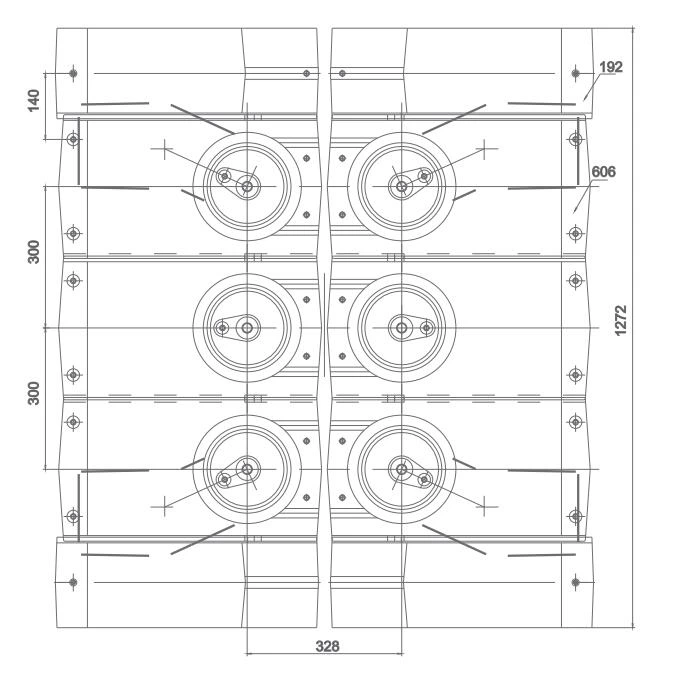

Scheme 4: Phase Spacing 380

Specifications Drawing No. Quantity Inter-electrode Distance
CHN40.5-311P/606  5RA35.012.151.01 2 328
CHN40.5-311P/606  5RA35.012.151.06 2 328
CHN40.5- 306P/606 5RA35.012.060 2 328
ZB40.5-005  5RA35.012.022 4 328

Apply To Altitude 1500 Meters

Selection Scheme Of 40.5kV Cabinet

Selection Scheme Of 40.5kV Cabinet
